UNMACTHED PERFORMANCE FOR YOUR TALARIA KO MOTO REDEFINES WHAT IS  POSSIBLE


TALARIA UPGRADE


MOTOR


UNLEASH THE POWER

UNMACTHED PERFORMANCE FOR YOUR TALARIA - KO MOTO REDEFINES WHAT IS  POSSIBLE

$1089

ONLY


COLOURS AVAILABLE


GOLD

RED


PURPLE


BLUE

ko red.png

35KW

PEAK POWER

UP TO

WHY SHOULD I BUY A KO TALARIA MOTOR?

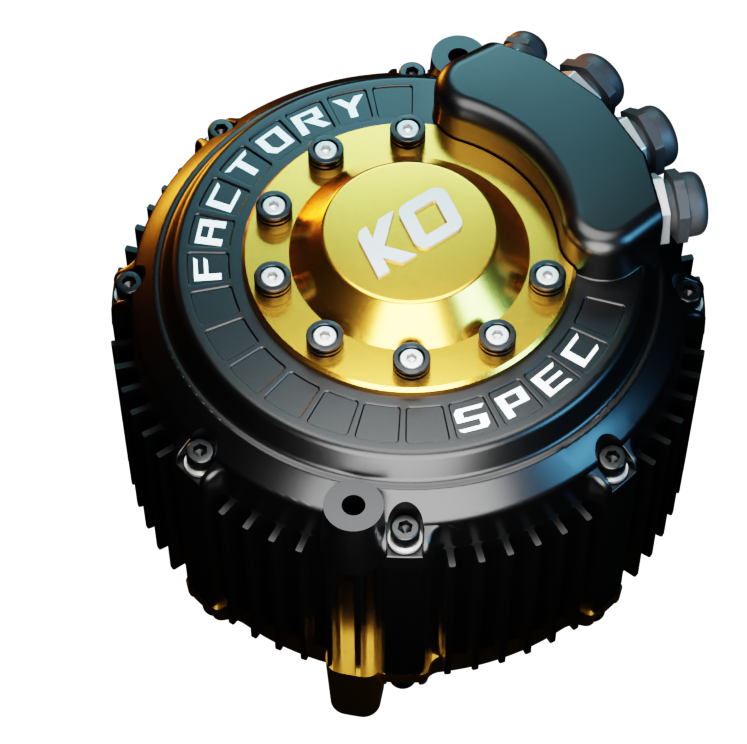

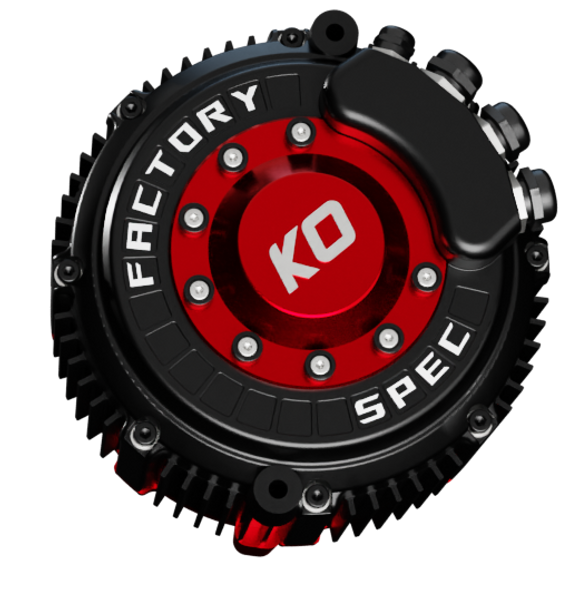

The KO upgrade motor for the Talaria has been designed from scratch by our engineering team to be the best Talaria upgrade motor available. We have taken every aspect of what we think will give the most power, the best cooling and the best performance possible and rolled it all into one motor. Up to 35KW of peak power and monster performance. We have applied all of our extensive engineering know-how and experience, as well as our own patented technology.

​

MOTOR WEIGHT (INCLUDING WIRES) 10KG APPROX

ONLY

$1089


$1089

ONLY

1) TRUE FACTORY FIT



This motor will fit to your Talaria using the stock mounting positions on your bike. It will also connect directly to our controller in the simplest way possible. This means that you don't have to do any additional procedures to fit, no extra cables, no extending phase wires and no extra messing around with brackets to get it on your bike.  It will fit just like a stock controller motor, because it was made to fit this way.


2) PROPER WATERPOOFING



Unlike the standard Talaria motor our motor is IP69 waterproof certified giving you peace of mind tackling any terrain in any weather, without letting you down.

​

3) FULL CNC CONSTRUCTION



Our motor is made entirely from a billet of 7075 aluminium, this not only enhances the look and quality feel of the motor but it significantly improves heat dissipation over a cast casing. This gives maximum durability, maximum heat dissipation and a motorcycle grade anodized finish. We have also extended the cooling fins of the casing to allow for more efficient and substantial cooling properties.

4) LARGER STATOR VOLUME



By making changes to the placement of the sensor housing we have managed to cram in a much larger stator volume into the same casing size as the original Talaria Motor. A bigger stator volume means more power. The  motor features a copper packed hand wound 160mm x 53mm stator. This allows the motor to put down some serious power and helps with thermal management.

MOTOR SPECIFICATIONS

​​

  • INTERNAL MAGNET MOTOR (IPM) KO DESIGNED MANUFACTURED ROTOR / STATOR.

  • STATOR DIMENSIONS - 160mm X 53mm.

  • WORKING VOLTAGE - 48V-100V.

  • COLD ROLLED SAE 1045 STEEL SHAFT

  • CUSTOM KO DESIGNED AND PATENTED ROTOR AND HEAT SINK DESIGN ALLOWS HEATSOAK DISSIPATION ON THE ENDS OF THE STATOR.

  • KO DESIGNED AND PATENTED INTERNALS PRESSURE EQUALIZATION SYSTEM COMPATIBLE.

  • KO DESIGNED AND PATENTED CRYO COLD AIR INJECTION SYSTEM COMPATIBLE.

  • KO DESIGNED AND MANUFACTURED CRYO ROTOR/ STATOR ANTI CORROSION COATING.

  • INDUSTRY LEADING SKF BEARING AND SEALS (OR EQUIVALENT) FOR THE LOWEST ROLLING RESISTANCE AND EFFICIENCY.

  • JAPANESE SOURCED 0.35 NIPPON STEEL STATOR / ROTOR LAMINATED.

  • INDUSTRY LEADING 1.5mm AIR GAP.

  • INDUSTRY LEADING IMPORTED 150°C / 302F NEO MAGNETS.

  • HAND WOUND 220°C HIGH TEMP COPPER WINDINGS.

  • CUSTOM WATERPROOF DESIGNED (IP69)  AND MANUFACTURED HALL SENSOR WITH 6 MONTH REPLACEMENT WARRANTY AGAINST WATER / MOISTURE DAMAGE.

​

  • POWER - PEAK 35KW  (BASED ON THE MOTOR RATING, YOUR BATTERY WILL DETERMINE THE POWER PRODUCED BY THE MOTOR)

  • MAX TORQUE @60V - 55NM

  • MAX STABLE ROTOR RPM - 12,000RPM

  • MAX EFFICIENCY 97%
